1. Material Systems and Printing Technologies

1.1 Thermoplastic and Thermoset Matrix Systems

Polymer composite systems used in large-format additive manufacturing (LFAM) fall into two primary classes — thermoplastics and thermosets. Each offers unique performance profiles for infrastructure-scale applications.

Thermoplastic Composites

• PLA — biodegradable and sustainable; ideal for low-temperature, recyclable, or temporary civil components. Reinforcements such as fibers or nanoparticles further enhance performance.
• ABS — higher toughness and better outdoor durability compared with PLA; suitable for architectural or functional building components.
• High-performance thermoplastics (PEEK, ULTEM) — essential for structures requiring high thermal, mechanical, or chemical resistance.
• Recycled thermoplastics (rPET) — reduce carbon footprint but require controlled processing to avoid molecular degradation.

Thermoset Composites

SLA/DLP thermoset systems deliver high dimensional precision and superior thermal stability. However, due to cross-linked chemistry, recycling at large structural scale remains challenging.

1.2 Fiber-Reinforced Composite Systems

Reinforcements directly determine structural efficiency and application suitability:

• GFRP — cost-effective, fatigue-resistant; widely used for façade structures, decks, and pedestrian bridges.
• CFRP — exceptional strength-to-weight performance; ideal for retrofitting and high-precision printed structural elements.
• Natural fibers — (bamboo, flax, hemp) enable sustainability-driven design but require treatment for moisture and UV exposure.
• Functional fillers — SiO₂, Al₂O₃ and other particles increase stiffness, thermal resistance, or wear durability.

1.3 Large-Scale Additive Manufacturing Technologies

Key LFAM technologies used in civil and architectural engineering:

Extrusion-Based 3D Printing (E3DP)

Most widely used for large geometries; supports fiber-reinforced filaments and pellet-fed composite systems.

Binder Jetting

Suitable for powder-based composites with minimal thermal deformation and smoother surface finishes.

Robotic Large-Format Additive Manufacturing (RLFAM)

Multi-axis robotic deposition allows complex geometry, support-free printing, and continuous fiber integration — ideal for structural webs, stiffeners, and façade modules.

2. Global Case Studies: From Bridges to Buildings

Worldwide demonstrations illustrate how composite 3D printing is being deployed at infrastructure scale.

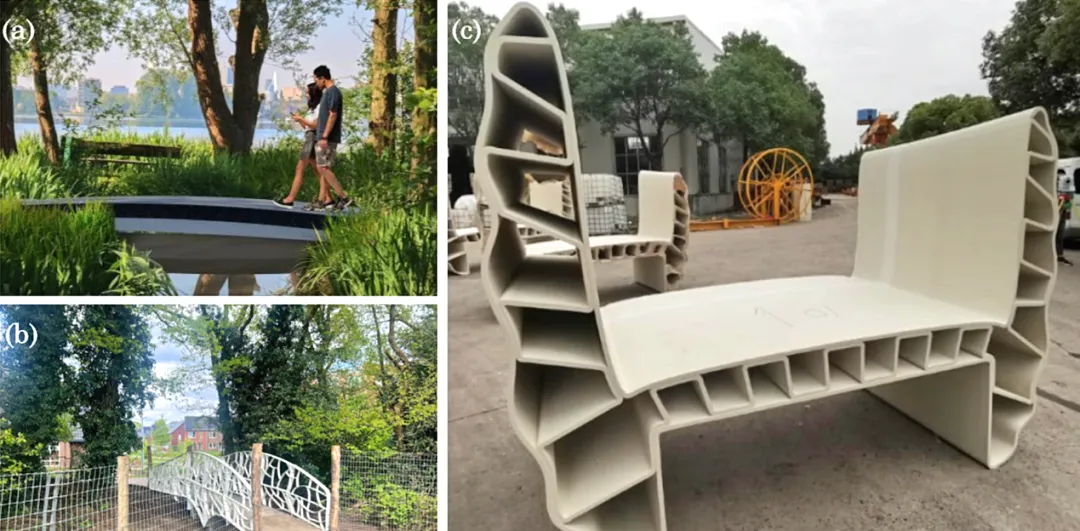

2.1 Bridge Engineering

• Rotterdam (Netherlands) — a 6.5 m GFR-PET pedestrian bridge achieving ~50% carbon reduction over its lifecycle.
• Limburg Pedestrian Bridge — validated fatigue behavior of GFRP composite structures under cyclic pedestrian loads.
• Liuyun Bridge (China) — a 17.5 m ASA-3012 composite bridge printed in just 35 days, demonstrating unmatched rapid construction capabilities.

2.2 Building & Modular Construction

• BioHome 3D (USA) — fully bio-based fiber + resin structural printed modules with high recyclability.
• Jindi Modular Housing (Australia) — recycled plastic cores combined with cementitious coatings for fire-rated performance.
• Azure Tiny Homes (USA) — residential modules printed in 24–48 hours using recycled polymer feedstock.

2.3 Structural Strengthening & Seismic Applications

Advances include continuous carbon-fiber printed grids and CFRP/PLA retrofits for improved shear stiffness, ductility, and seismic energy dissipation — enabling fast deployment in earthquake-prone environments.

3. Key Technical Challenges

Despite accelerating adoption, LFAM still faces critical engineering and industrial challenges:

3.1 Mechanical Anisotropy

Layer-by-layer deposition introduces directional strength differences. Optimizing fiber alignment, interlayer bonding, and post-print consolidation remains essential.

3.2 Durability & Environmental Resistance

• UV exposure and photodegradation
• Moisture absorption in natural fibers
• Fire performance relative to building-code compliance

3.3 Large-Scale Manufacturing Bottlenecks

Material cost, printing throughput, and system footprint remain barriers — e.g., a 5,800 kg composite bridge may require multiple continuous weeks of printing.

3.4 Standards & Certification

Structural codes, long-term performance datasets, and testing standards are still developing, slowing widespread certification.

3.5 Recycling & End-of-Life Management

Closed-loop recycling for thermoset and fiber-reinforced systems remains a priority research direction.

4. Future Directions and Opportunities

4.1 Process Optimization

Multi-axis deposition, in-situ consolidation, and hybrid CNC finishing will significantly improve strength, dimensional accuracy, and production repeatability.

4.2 Smart & Functional Materials

Embedded sensors, conductive pathways, and self-healing polymers will enable next-generation intelligent infrastructure.

4.3 Sustainable Material Development

Research focuses on bio-based polymers, upgraded rPET composites, and improved natural fiber treatments to meet both performance and sustainability targets.

4.4 High-Performance Composite Tooling

As printed components grow larger, high-quality tooling becomes crucial for validation, hybrid assemblies, and mass production. MDC’s SMC/ BMC tooling, FRP moulds, and precision forming technologies offer core capabilities for large-format composite manufacturing.

4.5 Standardization & Policy Support

Progress in structural codes, durability databases, and sustainability frameworks will drive broader acceptance and investment.

5. How MDC Mould Supports Composite 3D Printing Adoption

MDC Mould (Zhejiang MDC Mould Co., Ltd.) sits at the intersection of composite tooling innovation and industrial-scale composite processing. MDC strengthens adoption of LFAM technologies through:

• Precision Prototype Tooling — SMC/BMC and FRP moulds that validate printed geometries, hybrid composite joints, and structural features.
• Surface & Dimensional Finishing — advanced forming tools enabling architectural-grade surfaces and modular façade precision.
• Vacuum, thermal, and consolidation technologies — improving mechanical performance of printed composites and hybrid parts.
• Large-Format Composite Tooling — enabling scalable production of structural panels, shells, stiffeners, and infrastructure components.
